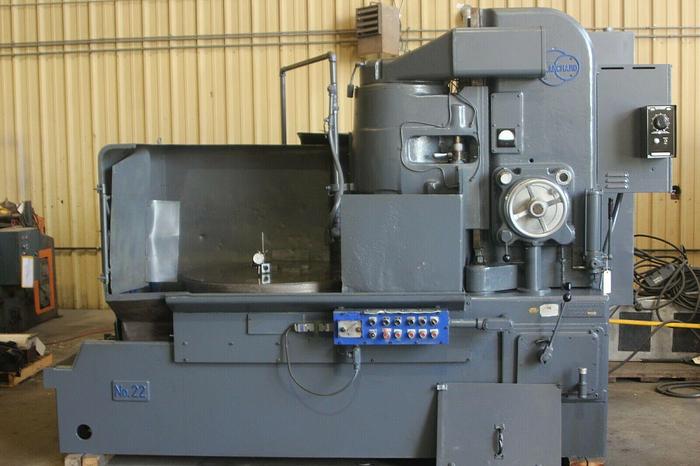

Blanchard Rotary Grinder No. 22

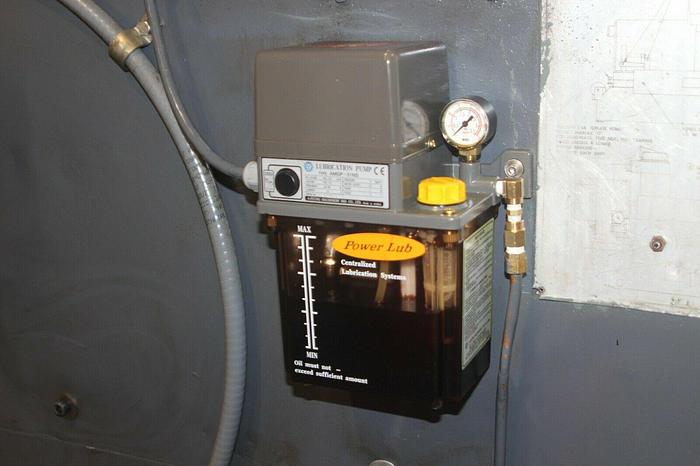

42" CHUCK, COOLANT SYSTEM, REGROUND WAYS, UPGRADED CENTRAL LUBE SYSTEM, COOLANT SYSTEM.

X-Axis Travel : 24"

Grinding Wheel Diameter : 22"

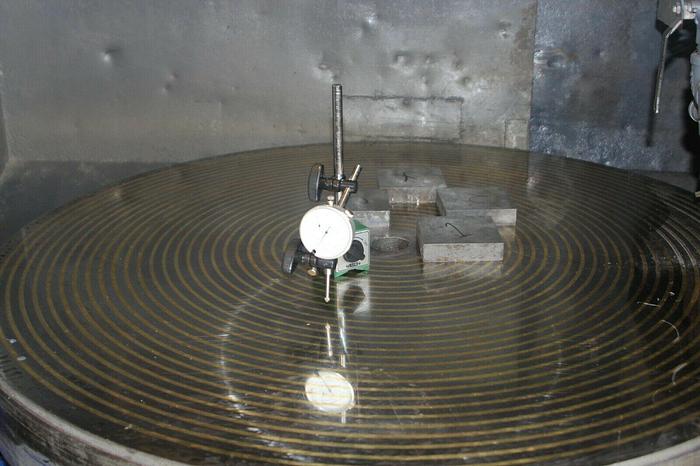

Magnetic Chuck Diameter : 48"

Max. Weight Capacity : 3000 lbs.

Max. Swing : 48"

Standard Grinding Horsepower : 50 HP

Vertical Range : 24"

Optional Vertical Range : 36"

Drive System : Servo

Coarse Feed Rate : .001" to .100" IPM

Fine Feed Rate : .0001" - .010" IPM

Chuck Rotation Speeds : 6-24 RPM

Approximate Net Weight : 15,000 lbs.
