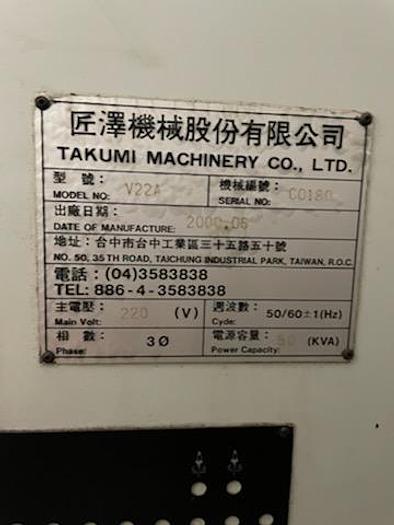

2000 Takumi V22A

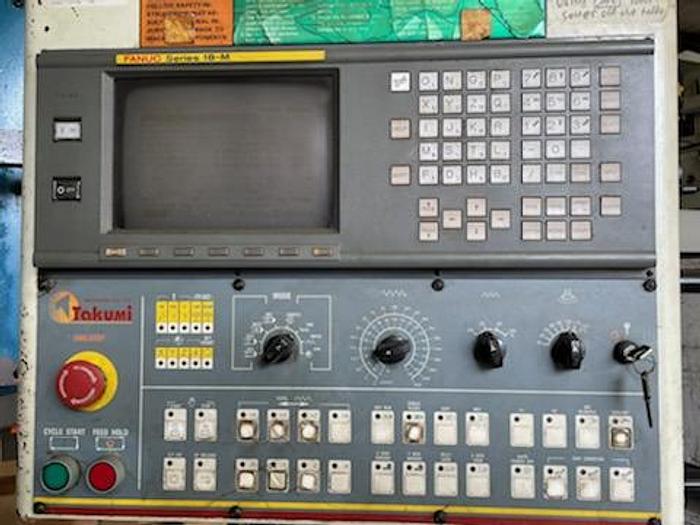

CONTROL: Fanuc 18m

TABLE WORKING SURFACE.................: 86.6" x 40"

TABLE CAPACITY........................: 6614 LBS.

TABLE TO SPINDLE .....................: 6" TO 42"

TABLE TO FLOOR .......................: 34"

SPINDLE CENTER TO COLUMN WAYS.........: 37"

LONGITUDINAL TRAVEL (X-AXIS) .........: 86.6"

CROSS TRAVEL (Y-AXIS) ................: 40"

VERTICAL TRAVEL (Z-AXIS)..............: 29.5"

FEED RATES, ALL AXES .................: 0 - 197 IPM

RAPID TRAVERSE RATE ..................: 0 - 472 IPM/ X & Y

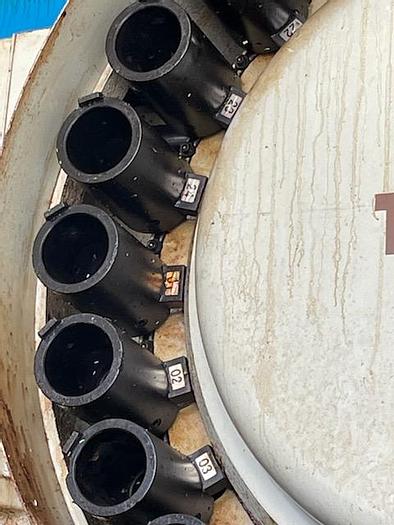

TOOL STORAGE CAPACITY ................: 24 Stations

SPINDLE HORSEPOWER....................: 30/35 HP

SPINDLE SPEEDS RANGE..................: 0 – 6,000 RPM GEARED

SPINDLE TAPER.........................: CAT #50

MACHINE WEIGHT........................: APPROX. 43,000 LBS.

EQUIPPED WITH:

(2) CHIP CONVEYORS

Ciller Unit

Auto Lube

Upgraded Spindle bearings

Hand Held Manual Pulse Generator

Machine Manuals

Ethernet connection

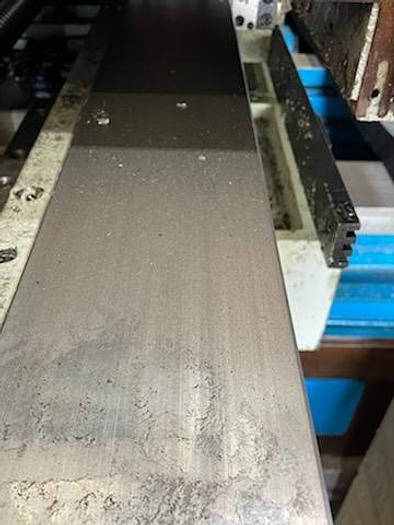

Box Ways
