2020 Eurotech B446-SY2 RBT2 TROFEO

Equipped With

Fanuc 31iB CNC Control

Tri-Mist 850 G2 Mist Collector

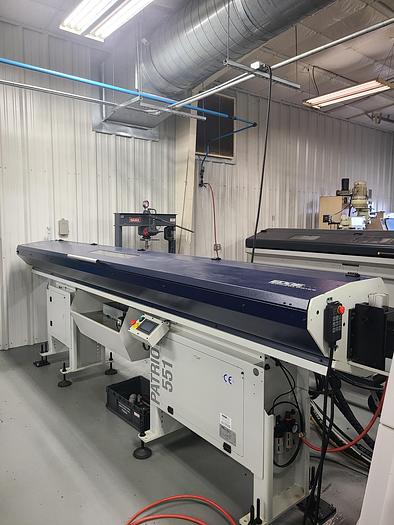

12 Foot Edge Patriot 551 Magazine Barfeed

LNS Magnetic Chip Conveyor in addition to Standard Chip Conveyor (2 chip conveyors included)

1000 PSI HP Dual Pump Coolant System

Coolant Thru Sub-Spindle

Royal QG-65 Main Spindle Collet Chuck

Royal QG-42 Sub-Spindle Collet Chuck

200mm Ejector Option

Fargo DA 51XN1/FE Transformer

General Specifications

Machining Capacity

Bar Capacity: 2.56"

Chuck Diameter: 8"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"

Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6"

Spindle Bore: 3.15"

Chuck Diameter: 10"

Motor Power: 35 HP

C-Axis Min. Programmable value: 0.001 Degrees

Sub-Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5"

Spindle Bore: 2.17"

Chuck Diameter: 6/8"

Motor Power: 15 HP

C-Axis Min. Programmable value: 0.001 Degrees

Offset Stroke: 4.72"

B-Axis Stroke (Rapid Traverse): 26.35 - 1181 IPM

Turrets

Number of Turrets: 3

Number of Stations: 12

Number of Tools: 192

Turret Indexing: 15 Seconds

Number of Live Tool Stations: 36

Number of Live Tools: 72

Live Tool Speed: 4,000 RPM

Motor Powered: 5 Geared

Rapid Traverse (X1/X2/X3): 708 IPM

Rapid Traverse (Z1/Z2/Z3): 1181 IPM

Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) - 354 IPM

Hours

Power on hours: 10117H

Run time: 6956H

Cutting time: 4760H

Optional Tooling

Osterle X Axis Live Tools 300-5501-E32 B109   Qty 9

P144-00118 Double Outlet Radial   Qty 5

P144-00901 3 Position ID Block   Qty 1

2 radial toolholders 10.57.82.00

3 boring bar holders 1 ¼” h=100mm  10.88.39.00

3 boring bar holders 1 ¼” h=  80mm  10.57.84.00

2 cut-off toolholders 10.57.85.00

2 toolholders 10.88.01.00

4 toolholders 20x20 to machine on the sub-spindle 10.88.14.00

2 coolant plugs 10.57.84.03.1

Machine Dimensions: 173" x 85" x 89"

Machine Weight: 18,500 lbs

*To the best of our knowledge all details listed are deemed correct.

It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
